TCX4 TouchController

The TouchController is one incredibly powerful little 1RU Controller that can read hundreds of thousands of sensors from connected VC6 Processors. Support for up to 4x connected VC6 Video Controllers with the TCX4 Model. Now supporting ROE Visual BM4i & BM5i Interactive LED Panels, YesTech MagicStage MG7S Series and CreateLED AirFloor-V1.


VC6_FrontPanel

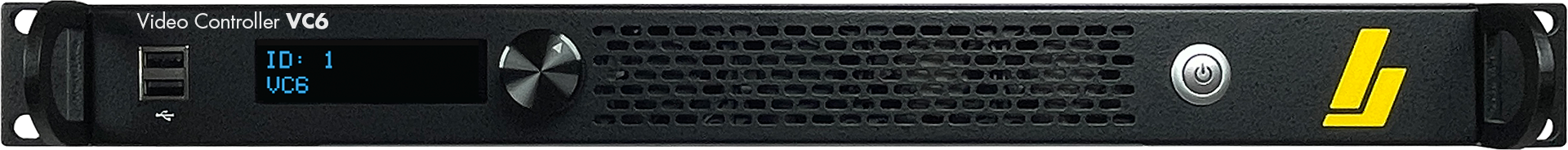

VC6 Video Controller

The VC6 Video Controller supports up to 1,500,000 pixels and tracks up to 16,896 Sensors simultaneously every 33 milliseconds. Maximum Input resolution of 1920 x 1080 @60Hz.




TCX4 TouchController

The BrightLogic TCX4 TouchController supports up to 4 connected BrightLogic Video Controllers (VC6). The TouchController provides an easy-to-use Web-Based GUI that can be accessed via an iPad, laptop, or desktop computer, making it extremely easy to configure your Interactive LED Panels. The TouchController provides real-time feedback of all sensor data from connected video controllers and offers an API (XML, NDI) for connecting 3rd Party Content Applications, such as TouchDesigner, Notch, Unity etc.

Touch Data Formats for Live Performance Applications

Touch Data is available in the following formats: XML, JSON, Image & NDI. The touch data can easily be read by industry-standard creative applications such as TouchDesigner, Notch, Unity, Cinder, OpenFrameworks and more...

Sensor Simulation Modes & Sensor Recording/Playback

There are plenty of built-in floor simulation modes which trigger (virtual sensors) on the API, this enables developers to be able to test with simulated touch data. The TouchController also includes a recording capability that enables developers to save and playback frame-accurate & timestamped interactive touch data from the interactive floor panels (walk, run, jump, dance, etc). This makes developing custom applications a breeze.

VC6 Video Controller

The BrightLogic Video Controller (VC6), is compatible with the NEW Interactive Black Marble BM4i & BM5i panels from ROE Visual, CreateLED AirFloor 3.9mm, and YesTech’s Magic Stage 3.9mm Interactive LED Floor Panels. A single Video Controller is capable of displaying up to 1,500,000 pixels while also detecting 16,896 Touchpoints (sensors) simultaneously every 33ms, so you can be sure every touch or footstep is accounted for.

Sensor Management and Calibration

The TouchController includes automatic calibration of sensors across large installations, therefore you can always be sure that the touch data is accurate. Sensors can be easily excluded from an interactive experience enabling objects such as tables, chairs and scenery to be placed on the ActiveFloor without affecting the content experience.




TouchController TCX4 Technical Details

Inputs

VC6 Video Controllers Supported (simultaneously)

  • 4x (TCX4 Model)

Network Ports

  • 1x LAN

  • 1x SERVICE

  • 1x MGMT (GUI)

  • Up to 8 VC6 Video Controllers (direct connect) or Network Switch for multiple Video Controllers

GUI

  • Web Based GUI - provides a new exciting easy-to-use GUI without having to download or install any software.

Interactive Features

Max Touch Points per Touch Controller

TCX4: 55,473 Simultaneous Touch Points @ 33ms
(4 Connected Video Controllers)

For larger installations, touch data can be aggregated with multiple TouchControllers.

Touch Data Refresh Rate
33ms (based on 110,946 simultaneous touches)

Touch Data Formats
API Endpoints: XML, JSON, Image, NDI

Compatible with the following Applications

TouchDesigner, Notch, Unreal Engine, Unity, Javascript, Cinder, Processing and more…
Any application that can read XML or NDI Video Feeds can work with the sensor data.



Video Controller VC6 Technical Details

Inputs

Video Inputs

  • 1x HDMI (1920 x 1080 max input resolution)

Supported Resolutions
720x480; 800x600; 1024x768; 1152x864; 1176x664; 1280x720; 1280x768; 1200x800; 1280x960; 1280x1024; 1366x768; 1440x480; 1440x576; 1600x900; 1600x1024 ;1680x1050; 1768x992; 1920x1080; 1920x1200; 1920x1440

Frame Rate

  • 60Hz, 59Hz, 50Hz, 30Hz, 25Hz, 24Hz, 23Hz

Data Rate

  • 297Mpixel/s

Bit Depth

  • 32 / 24 / 16bit RGB (4:4:4)
    16bit YUV (4:2:2)
    12bit YUV,
    NV12,
    YV12 (4:2:0)

Latency from input to panel display

  • ~2 frames

Outputs

Fixture Output Ports

  • 6x Gigabit Ethernet Ports (3 primary, 3 backup)

Touch Data

  • 1x Gigabit Ethernet Port for Touch Data

Max Pixels

  • 1,500,000px per video controller

Backup/Redundancy

  • Automatic Failover to redundant video & touch data



BrightLogic Receiver Card with Touch Support

Paired with the VC6 Video Controller is BrightLogic’s NEW Receiver Card, capable of processing touch data from the Interactive LED Panels. To learn more about integrating BrightLogic’s new Interactive LED products, complete the Contact Us form.

If you would like to integrate BrightLogic’s Sensor Framework into your product, get in touch.
