Panel Options

Our Interactive LED Panels come in a few different flavors; a 7.8mm pixel pitch and the new 5.9mm pixel pitch panel.

ActiveFloor Panels are high contrast, high brightness panels which provide a truly interactive experience. These panels have built-in optical sensors that detect when they have been activated by a foot, hand or really anything that you'd like to place on our interactive ActiveFloor Panels (including cars)!






Panel

Our Interactive LED Panels come in a few different flavors; a 7.8mm pixel pitch (4,096 pixels per panel) and the new 5.9mm pixel pitch panel (7,056 pixels per panel).

ActiveFloor Panels are high contrast, high brightness panels which provide a truly interactive experience. These panels have embedded optical sensors that detect when they have been activated by a foot, hand or really anything that you'd like to place on our interactive ActiveFloor Panels (including cars)!

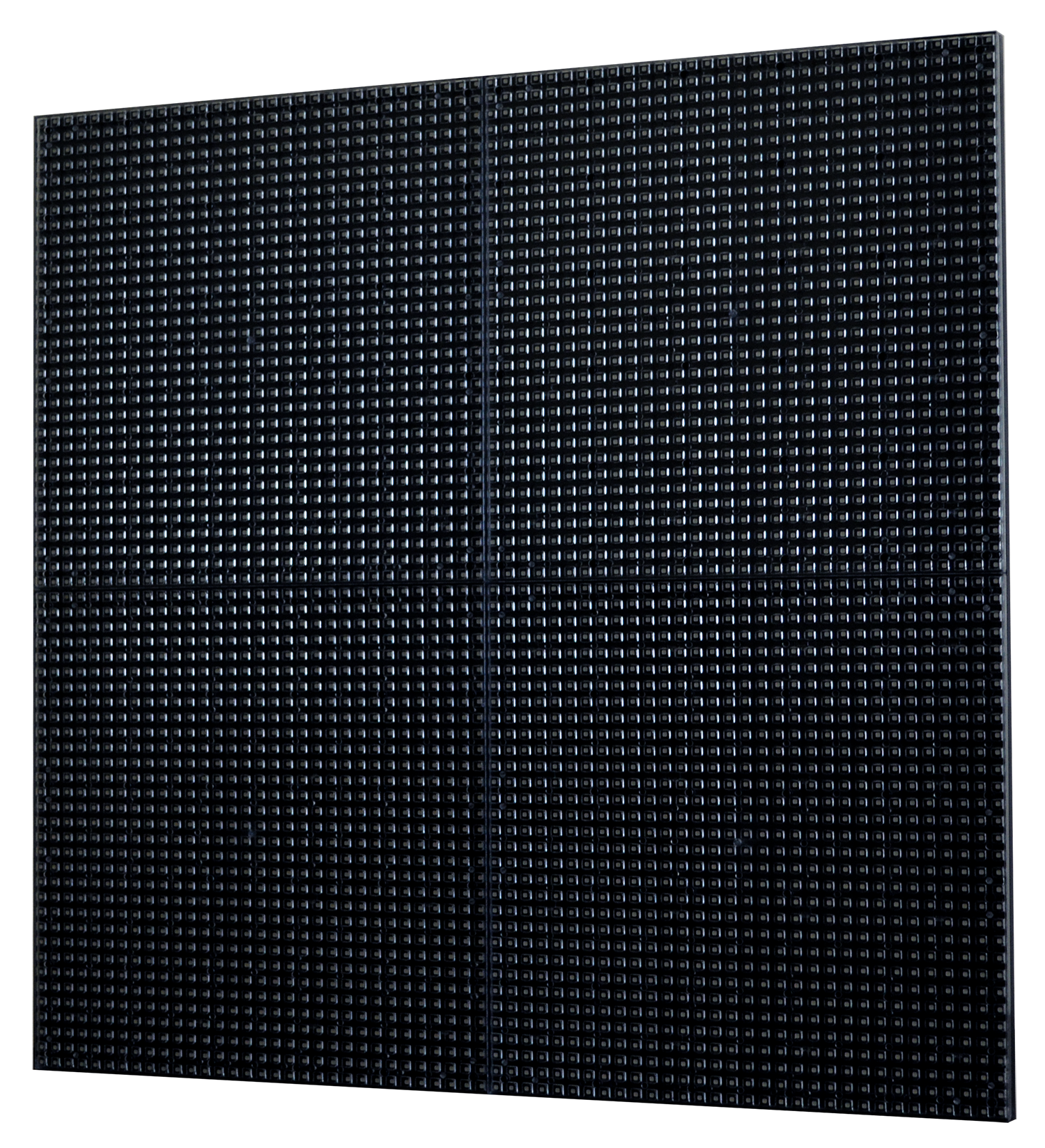

NEW! ActiveFloor Panel 5.9MM

Announcing our new 5.9mm ActiveFloor Panel, our latest addition to the ActiveFloor Product Line!

It includes an 84px x 84px (7,056px) matrix of LEDs – making it the highest pixel matrix for an interactive LED panel on the market!

  • Real-time touch data to the Content Server

  • 33 millisecond response time whether you have 1 or 1000 people on the ActiveFloor

  • Includes BrightLogic's New Receiver Card, which provides a level of control never seen before in an Interactive LED Panel

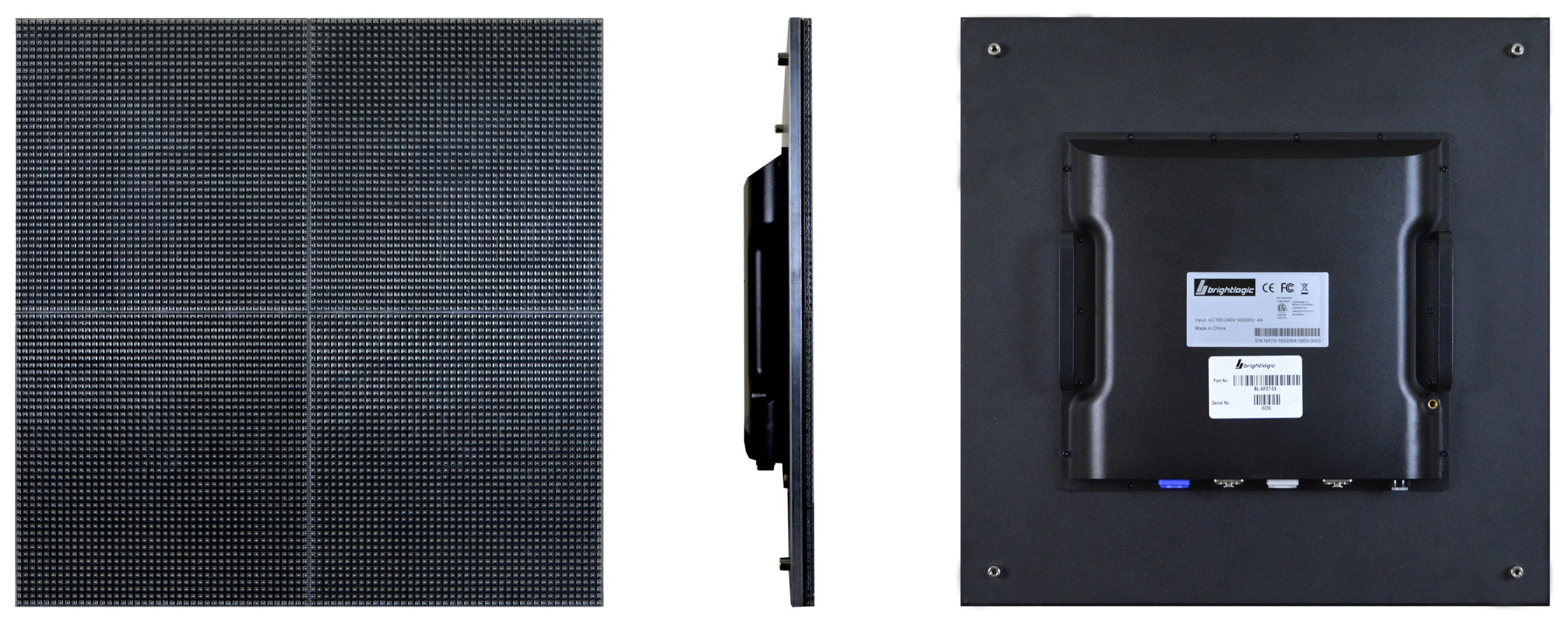

 Side angle shot facing text

84px x 84px (7,056px)  /// 64 Sensors per Panel  /// IP54
3in. High Installation Profile /// High Brightness

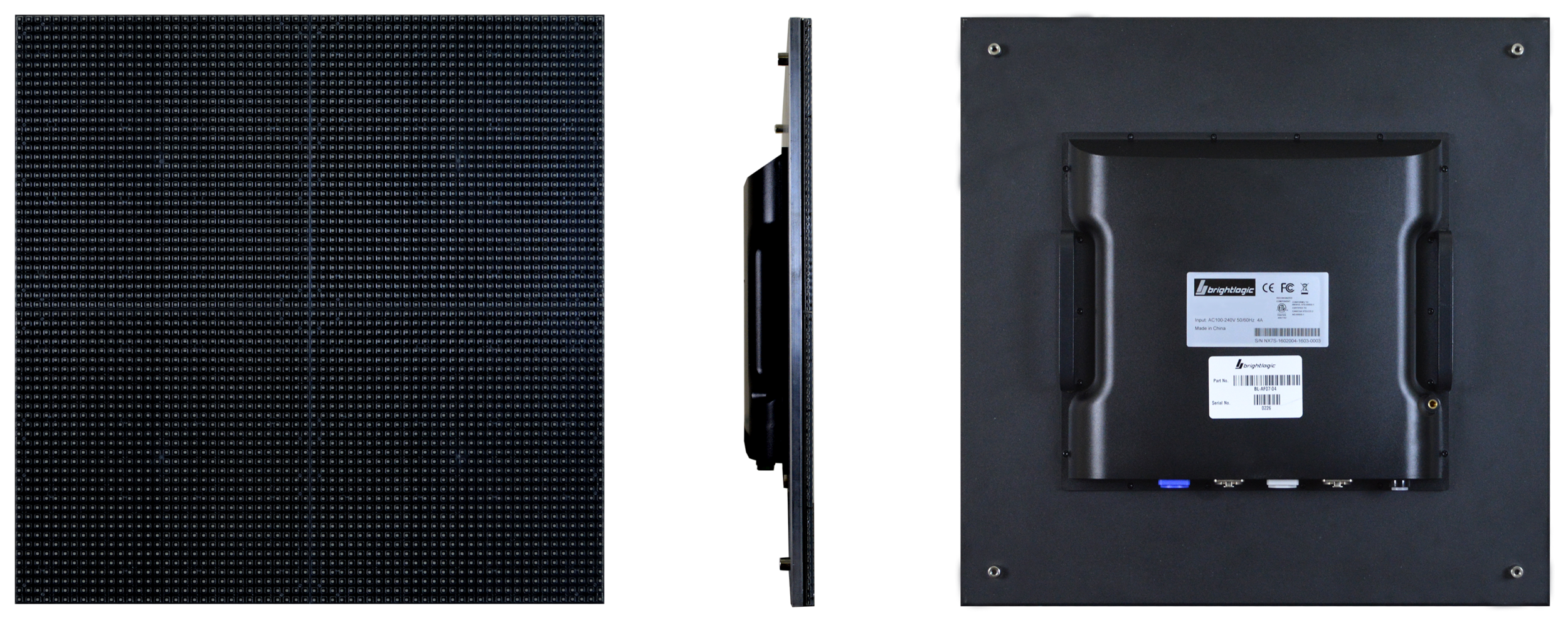

ActiveFloor Panel 7.8MM

The 7.8mm ActiveFloor Interactive LED Panel is our tried and true Interactive LED Floor Panel. It includes an 64px x 64px matrix of LEDs (4,096px total per panel).

  • Real-time touch data to the Content Server

  • 33 millisecond response time whether you have 1 or 1000 people on the ActiveFloor

  • Includes BrightLogic's New Receiver Card, which provides a level of control never seen before in an Interactive LED Panel

64px x 64px (4,096px) /// 64 Sensors per Panel  /// IP54

3in. High Installation Profile /// High Brightness






Panel Specifications

PanelActiveFloor Panel 5.9mmActiveFloor Panel 7.8mm
Pixel Pitch5.9mm7.8mm
Pixel Matrix84x84 pixels per panel64x64 pixels per panel
Pixel ConfigurationSMD 3-in-1SMD 3-in-1
Brightness1800-2800 Nit1800-2800 Nit
Data Refresh Rate1,500 Hz1,500 Hz
Grey Scale12 Bit12 Bit
Brightness Adjustment256 Levels256 Levels
Contrast1000:11000:1
Unit Size50x50x6cm / panel 19.69x19.69x2.36in / panel50x50x6cm / panel 19.69x19.69x2.36in / panel
Weight20lbs / panel20lbs / panel
Max Weight Held2,650 lbs per square meter2,650 lbs per square meter
Power Consumption150W / panel150W / panel
Viewing Angle120° / 120°120° / 120°
LED Life>50,000 Hours (50% Brightness)>50,000 Hours (50% Brightness)
Working Temperature14°F - 104°F14°F - 104°F
Relative Humidity10% - 90%10% - 90%
Protection LevelIP54IP54
Working VoltageAC110-240V/ 50-60HzAC110-240V/ 50-60Hz






Panel Accessories

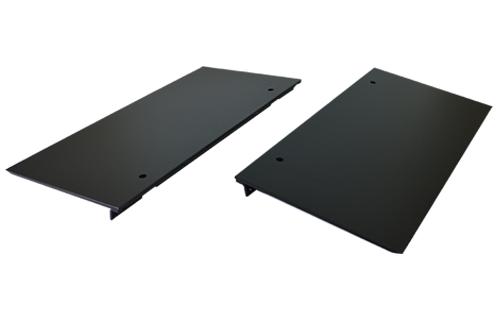

Ramps

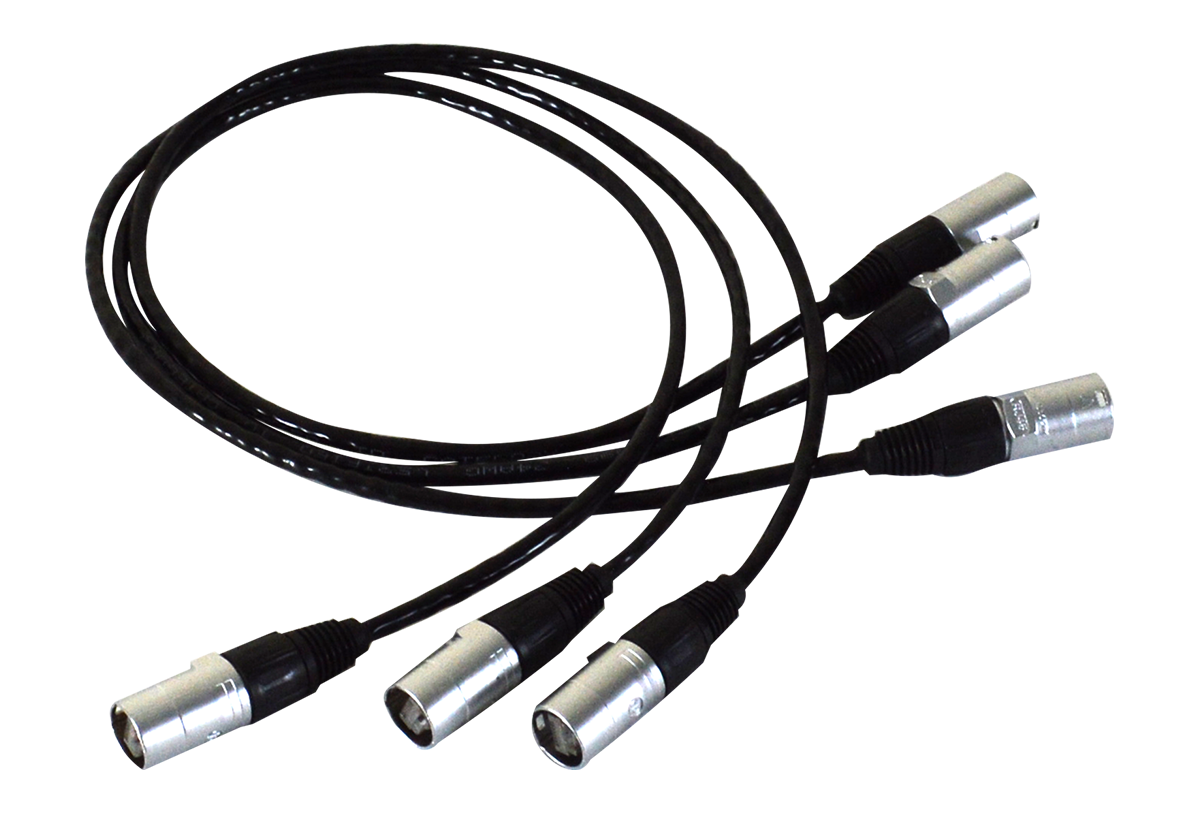

DATA Cables

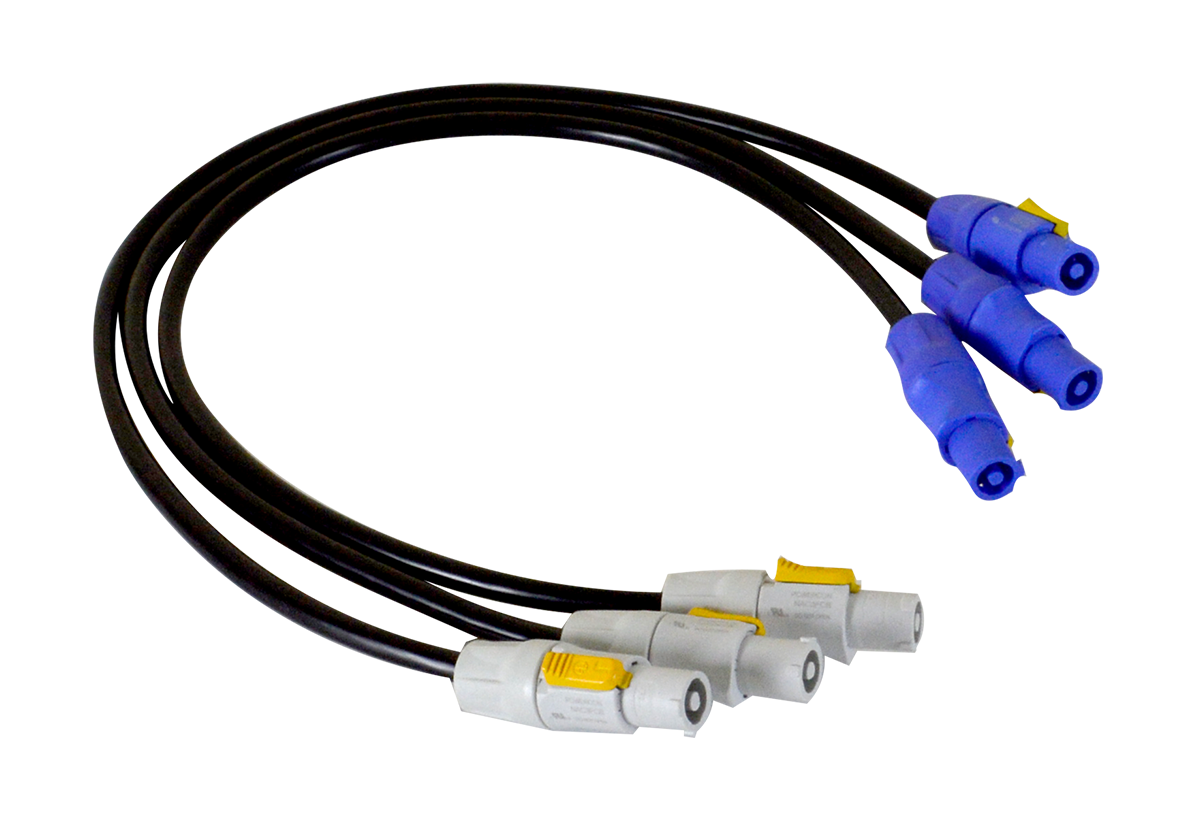

POWER CABLES

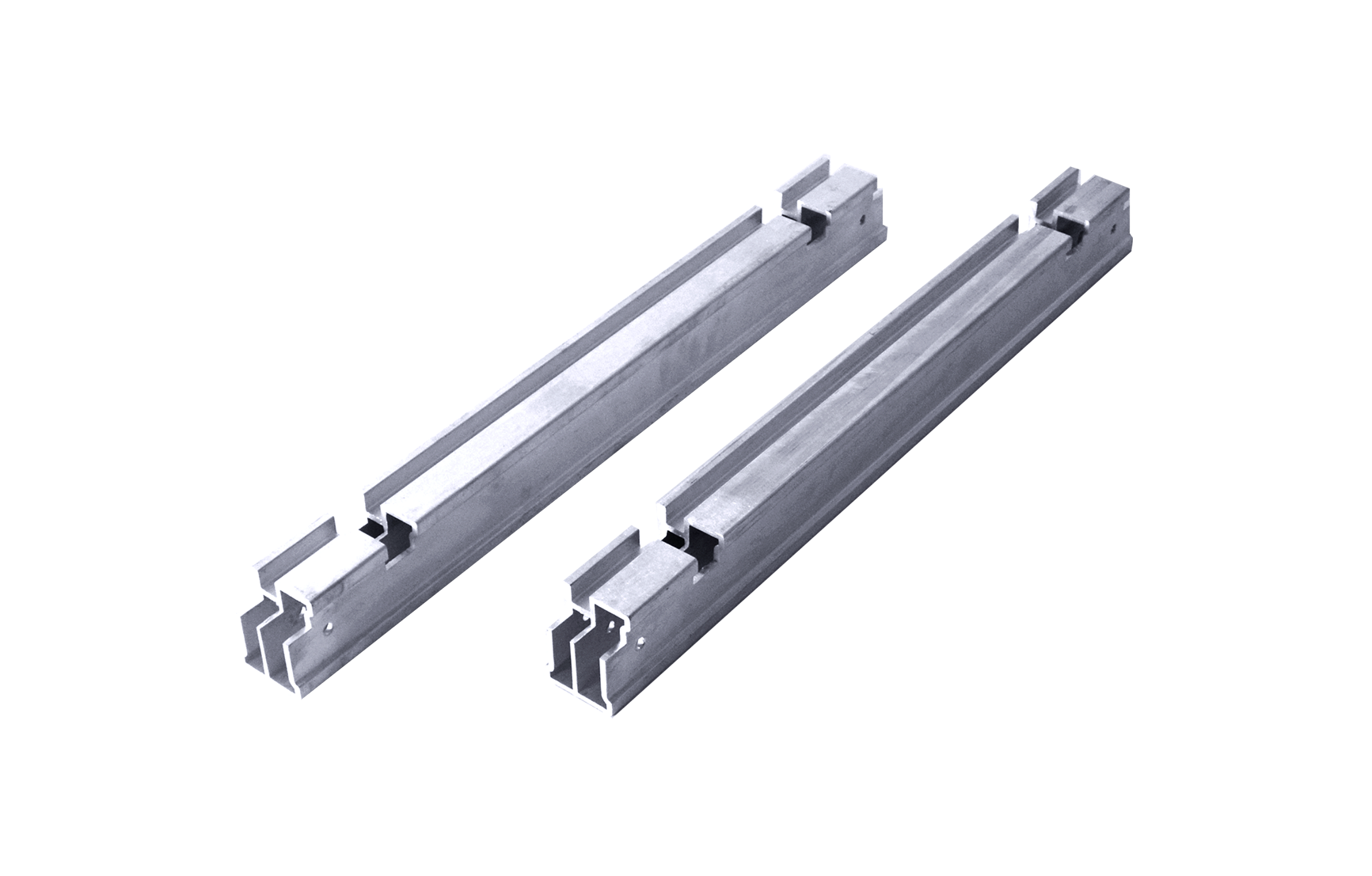

RAILS



Ready for your ActiveFloor System?
